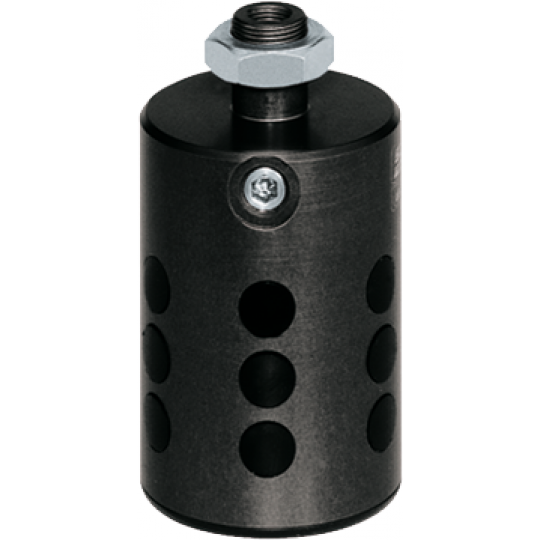

SOM BIL BAU LGG100 100 SALL AIN V2 1

Terug

LGG Serie

-Grote serie-variatie

-Enkelwerkend systeem

-Rubberen membraam

-Voorkomt beschadiging

LG15-18-22-26-30

Artikelcode	Download	Total stroke in Ø	Clamping diameter d min	Clamping diameter D max
LG15-18	PDF	2.5 [mm]	15 [mm]	17.5 [mm]
LG18-22	PDF	4 [mm]	17.5 [mm]	21.5 [mm]
LG22-26	PDF	4 [mm]	21.5 [mm]	25.5 [mm]
LG26-30	PDF	4 [mm]	25.5 [mm]	29.5 [mm]
LG30-35	PDF	5 [mm]	29.5 [mm]	34.5 [mm]

LG100-110-120

Artikelcode	Download	Total stroke in Ø	Clamping diameter d min	Clamping diameter D max
LG100-110	PDF	11 [mm]	99.5 [mm]	110.5 [mm]
LG110-120	PDF	11 [mm]	109.5 [mm]	120.5 [mm]
LG120-135	PDF	16 [mm]	119.5 [mm]	135.5 [mm]

LG35-40-46-51-56-63-61-76-81-91

Artikelcode	Download	Total stroke in Ø	Clamping diameter d min	Clamping diameter D max
LG35-39	PDF	4.5 [mm]	34.5 [mm]	39 [mm]
LG40-45	PDF	6.5 [mm]	39.5 [mm]	46 [mm]
LG46-51	PDF	6 [mm]	45.5 [mm]	51.5 [mm]
LG51-56	PDF	7 [mm]	50.5 [mm]	57.5 [mm]
LG56-62	PDF	7.5 [mm]	55.5 [mm]	63 [mm]
LG63-70	PDF	8 [mm]	62.5 [mm]	70.5 [mm]
LG71-80	PDF	10.5 [mm]	70.5 [mm]	81 [mm]
LG76-84	PDF	8.5 [mm]	75.5 [mm]	84 [mm]
LG81-90	PDF	11 [mm]	80.5 [mm]	91.5 [mm]
LG91-100	PDF	10 [mm]	90.5 [mm]	100.5 [mm]
