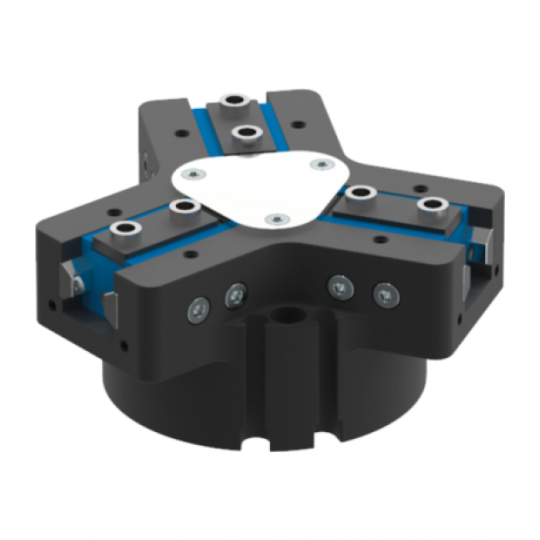

GPD5000

-Universele 3-punts-grijper

-30% grotere sluitkracht

-10% grotere belastbaarheid

-ip64-afgedicht (optie ip67)

-Tot 30 miljoen slagen onderhoudsvrij

GPD5003

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5003N-00-A	PDF	2.5 [mm]	310 [N]	335 [N]
GPD5003NC-00-A	PDF	2.5 [mm]	440 [N]	-
GPD5003NO-00-A	PDF	2.5 [mm]	-	465 [N]

GPD5004

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5004N-00-A	PDF	4 [mm]	460 [N]	500 [N]
GPD5004NC-00-A	PDF	4 [mm]	650 [N]	-
GPD5004NO-00-A	PDF	4 [mm]	-	690 [N]
GPD5004S-00-A	PDF	2 [mm]	1010 [N]	1100 [N]
GPD5004SC-00-A	PDF	2 [mm]	1430 [N]	-
GPD5004SO-00-A	PDF	2 [mm]	-	1520 [N]

GPD5006

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5006N-00-A	PDF	6 [mm]	740 [N]	800 [N]
GPD5006NC-00-A	PDF	6 [mm]	1020 [N]	-
GPD5006NO-00-A	PDF	6 [mm]	-	1080 [N]
GPD5006S-00-A	PDF	3 [mm]	1620 [N]	1750 [N]
GPD5006SC-00-A	PDF	3 [mm]	2240 [N]	-
GPD5006SO-00-A	PDF	3 [mm]	-	2370 [N]

GPD5008

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5008N-00-A	PDF	8 [mm]	1260 [N]	1340 [N]
GPD5008NC-00-A	PDF	8 [mm]	1690 [N]	-
GPD5008NO-00-A	PDF	8 [mm]	-	1770 [N]
GPD5008S-00-A	PDF	4 [mm]	2780 [N]	2960 [N]
GPD5008SC-00-A	PDF	4 [mm]	3730 [N]	-
GPD5008SO-00-A	PDF	4 [mm]	-	3910 [N]

GPD5010

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5010N-00-A	PDF	10 [mm]	2290 [N]	2400 [N]
GPD5010NC-00-A	PDF	10 [mm]	3140 [N]	-
GPD5010NO-00-A	PDF	10 [mm]	-	3250 [N]
GPD5010S-00-A	PDF	5 [mm]	5050 [N]	5280 [N]
GPD5010SC-00-A	PDF	5 [mm]	6930 [N]	-
GPD5010SO-00-A	PDF	5 [mm]	-	7160 [N]

GPD5013

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5013N-00-A	PDF	13 [mm]	3770 [N]	3910 [N]
GPD5013NC-00-A	PDF	13 [mm]	5060 [N]	-
GPD5013NO-00-A	PDF	13 [mm]	-	5200 [N]
GPD5013S-00-A	PDF	6 [mm]	8310 [N]	8600 [N]
GPD5013SC-00-A	PDF	6 [mm]	11160 [N]	-
GPD5013SO-00-A	PDF	6 [mm]	-	11450 [N]

GPD5016

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5016N-00-A	PDF	16 [mm]	6870 [N]	7120 [N]
GPD5016NC-00-A	PDF	16 [mm]	9240 [N]	-
GPD5016NO-00-A	PDF	16 [mm]	-	9490 [N]
GPD5016S-00-A	PDF	8 [mm]	14700 [N]	15250 [N]
GPD5016SC-00-A	PDF	8 [mm]	19780 [N]	-
GPD5016SO-00-A	PDF	8 [mm]	-	20330 [N]

GPD5025

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5025N-00-A	PDF	25 [mm]	8430 [N]	8730 [N]
GPD5025NC-00-A	PDF	25 [mm]	11560 [N]	-
GPD5025NO-00-A	PDF	25 [mm]	-	11860 [N]
GPD5025S-00-A	PDF	14 [mm]	16240 [N]	16820 [N]
GPD5025SC-00-A	PDF	14 [mm]	22270	-
GPD5025SO-00-A	PDF	14 [mm]	-	22850 [N]

GPD5030

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5030N-00-A	PDF	30 [mm]	12130 [N]	12540 [N]
GPD5030NC-00-A	PDF	30 [mm]	16560 [N]	-
GPD5030NO-00-A	PDF	30 [mm]	-	16970 [N]
GPD5030S-00-A	PDF	17 [mm]	23150 [N]	23930 [N]
GPD5030SC-00-A	PDF	17 [mm]	31620 [N]	-
GPD5030SO-00-A	PDF	17 [mm]	-	32400 [N]

GPD5035

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5035N-00-A	PDF	35 [mm]	16600 [N]	17100 [N]
GPD5035NC-00-A	PDF	35 [mm]	23300 [N]	-
GPD5035NO-00-A	PDF	35 [mm]	-	23800 [N]
GPD5035S-00-A	PDF	20 [mm]	31500 [N]	32500 [N]
GPD5035SC-00-A	PDF	20 [mm]	44200 [N]	-
GPD5035SO-00-A	PDF	20 [mm]	-	45200 [N]

GPD5045

Artikelcode	Download	Stroke per jaw	Gripping force in closing	Gripping force in opening
GPD5045N-00-A	PDF	45 [mm]	27900 [N]	28850 [N]
GPD5045NC-00-A	PDF	45 [mm]	36900 [N]	-
GPD5045NO-00-A	PDF	45 [mm]	-	37850 [N]
GPD5045S-00-A	PDF	26 [mm]	53500 [N]	55400 [N]
GPD5045SC-00-A	PDF	26 [mm]	70600 [N]	-
GPD5045SC-00-A	PDF	26 [mm]	-	72500 [N]
